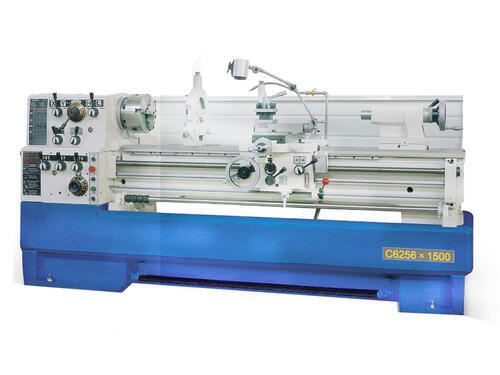

C6236 Универсальный токарный станок с низкой ценой

Specification

型号

Model

C6233×1000/1340

C6236×1000/1440

C6236V

Capacity

Swing over bed

330mm(13″)

356mm(14″)

356mm(14″)

Swing over cross slide

195mm(7-5/8″)

220mm(8-5/8″)

220mm(8-5/8″)

Swing in gap diameter

475mm(18-11/16″)

506mm(20″)

506mm(20″)

Valid length of gap

145mm(5-11/16″)

Admits between

1000mm(40″)

Width of bed

206mm(8″)

Headstock

Spindle nose

D1-4

Spindle bore

38mm(1-1/2″)

Taper of spindle bore

MT No.5

Range of spindle speed

16 changes 45～1800r/min

30～550r.p.m 155～3000r.p.m

Feed and threads

Compound rest travel

95mm(3-3/4″)

Cross slide travel

180mm(7″)

Max. section of tool

16mm×16mm(5/8″×5/8″)

Lead screw thread

8T.P.I. or 4mm

Longitudinal feeds range

0.0012″～0.0294″/rev（Inch lathe） or 0.043～0.653mm/rev （Metric lathe）

Cross feeds range

0.0004″～0.01″/rev（Inch lathe） or 0.027～0.413mm/rev（Metric lathe）

Threads metric pitches

0.45～7.5mm（Inch lathe） or 0.4～7mm（Metric lathe）

Threads inch pitches

4～112T.P.I. （Inch lathe）or 4～56T.P.I. （Metric lathe）

Tailstock

Quill diameter

45mm(1-3/4″)

Quill travel

120mm(4-3/4″)

Quill taper

MT No.3

Motor

Main motor power (double speeds)

1.5/2.4kW(2/3HP)

Coolant pump power

0.04kW

Dimension and weight

Overall dimension (L×W×H)

182×74×124cm

182×74×125cm

182×74×125cm

Packing size (L×W×H)

193×76×158cm

193×76×158cm

193×92×159cm

Net weight

700kg

730kg

750kg

Gross weight

820kg

860kg

880kg
