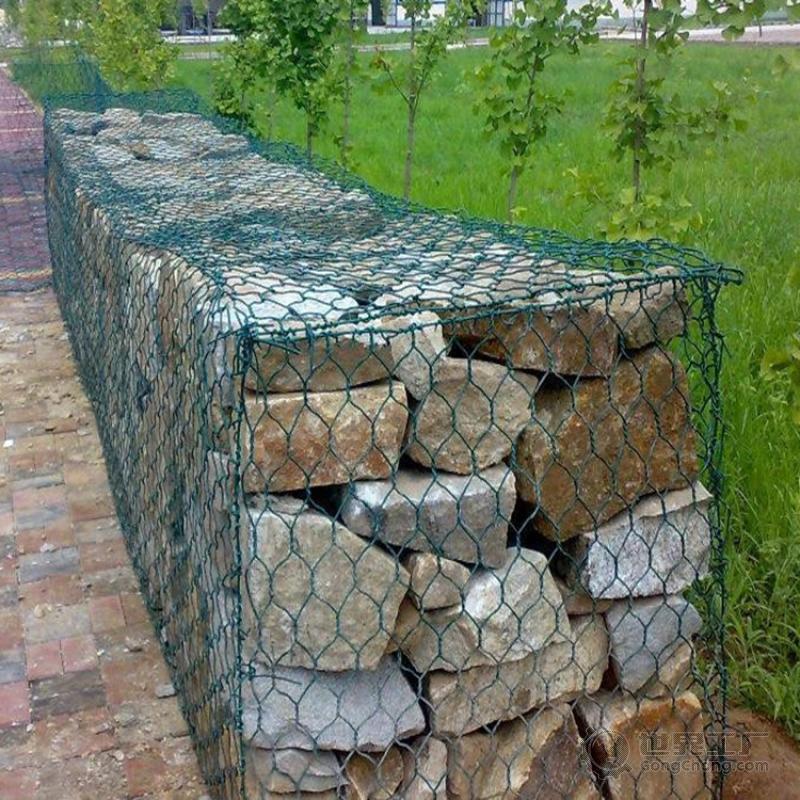

Hexagonal Wire Gabion

Gabions, fabricated from heavy hexagonal mesh, are extensively used in various civil engineering projects for flood control, soil protection, and structural reinforcement. These gabions come in multiple sizes and customization options to meet specific application needs.By understanding these common sizes and customization options, you can select the appropriate hexagonal mesh gabions for your specific needs, ensuring effective and efficient use in your projects.

Gabion Sizes

Hexagonal mesh gabions are available in standard sizes to accommodate different applications. The common sizes include:

• 2m x 1m x 1m: Suitable for general flood control and soil protection.
• 3m x 1m x 1m: Ideal for larger structures like bridge protection and seawalls.
• 4m x 1m x 1m: Used for extensive flood prevention and soil reinforcement projects.
• 2m x 1m x 0.5m: Fits well in smaller areas requiring water and soil protection.
• 4m x 1m x 0.5m: Used for wider coverage in structural reinforcement and bank stabilization.

Custom sizes can be manufactured upon request to meet specific project requirements.

Customization Capabilities of Hexagonal Mesh Gabions

Hexagonal mesh gabions can be customized in terms of material, coating, and mesh specifications to enhance their performance and longevity in various environments.

Material Customization
Gabions are made from two primary types of wire fabrics:

• Galvanized Hexagonal Wire Mesh Heavy Type: Constructed from high-quality low-carbon steel wire with a tensile strength of 38kg/mm². The wire diameter ranges from 2.0mm to 4.0mm. The steel wire is typically galvanized, with the galvanizing layer thickness customizable according to customer specifications. The maximum galvanizing quantity can reach 300g/m².
• PVC Coated Hexagonal Wire Mesh Heavy Type: Made from PVC-coated wire, which provides a longer service life and better corrosion resistance. This type is ideal for use in harsher environments.

Coating Customization
The finish of hexagonal mesh gabions can be tailored to enhance durability and aesthetic appeal:

• Hot-Dipped Galvanized: Offers superior protection against rust and corrosion.
• Galvanized Aluminum Alloy: Combines the benefits of both galvanizing and aluminum for increased durability.
• PVC Coated: Provides an extra layer of protection and is available in various colors to blend with the environment.

Mesh and Wire Specifications
Hexagonal mesh gabions are defined by their mesh size and wire gauge:

• Mesh Size: Common mesh sizes include 60x80mm, 80x100mm, and 100x120mm, depending on the application requirements.
• Wire Gauge: The wire diameter typically ranges from 2.0mm (BWG 14) to 4.0mm (BWG 8), providing different levels of strength and rigidity.

Applications of Hexagonal Mesh Gabions
Gabions are used in a wide range of applications due to their versatility and strength:

• Control and Guide of Water or Flood: Essential for directing water flow and preventing flooding.
• Flood Bank or Guiding Bank: Used to reinforce banks and guide watercourses.
• Preventing of Rock Breaking: Stabilizes rock formations and prevents erosion.
• Water and Soil Protection: Protects soil from erosion and retains moisture.
• Bridge Protection: Reinforces bridge foundations and prevents scouring.
• Strengthening Structure of Soil: Provides support and stability for soil structures.
• Protection Engineering of Seaside Area: Shields coastal areas from erosion and wave action.

Packaging and Additional Customization

• Gabions are typically packed in rolls or panels with waterproof paper for protection during transportation and storage. Custom packaging options are available to meet specific needs.
